Short Description:

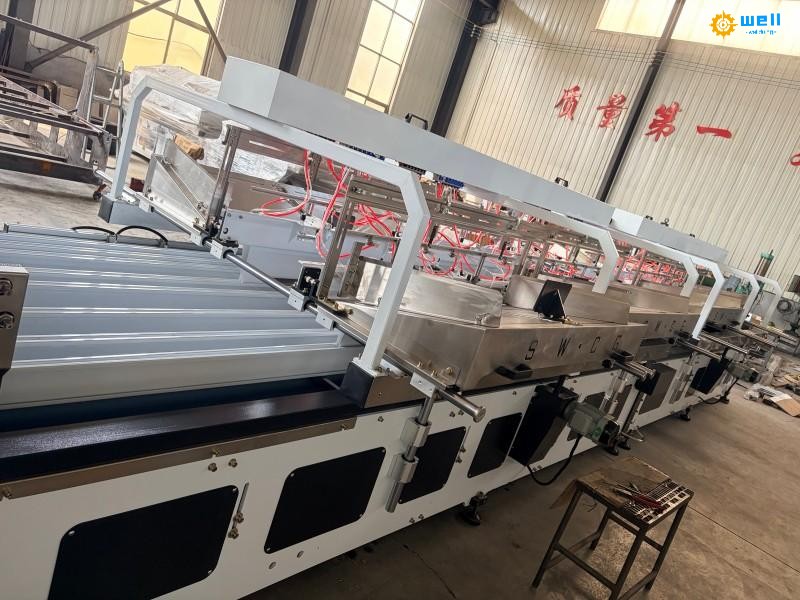

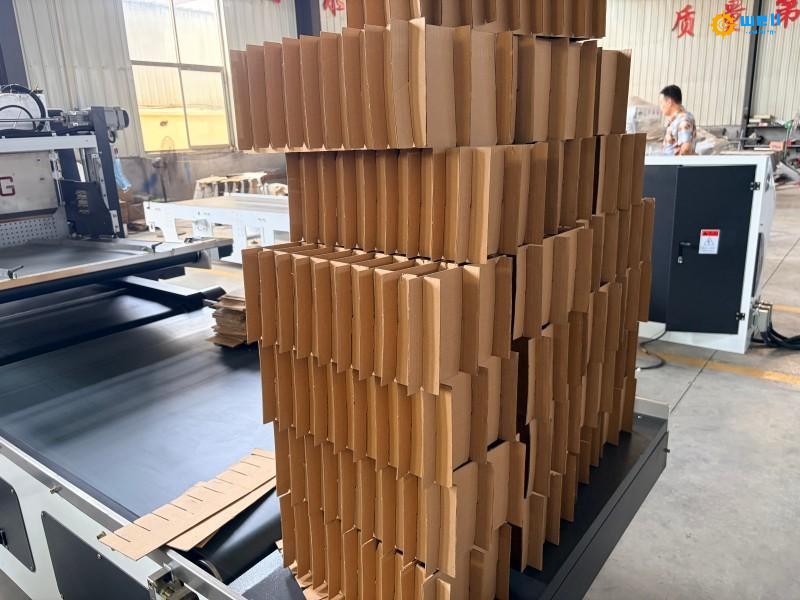

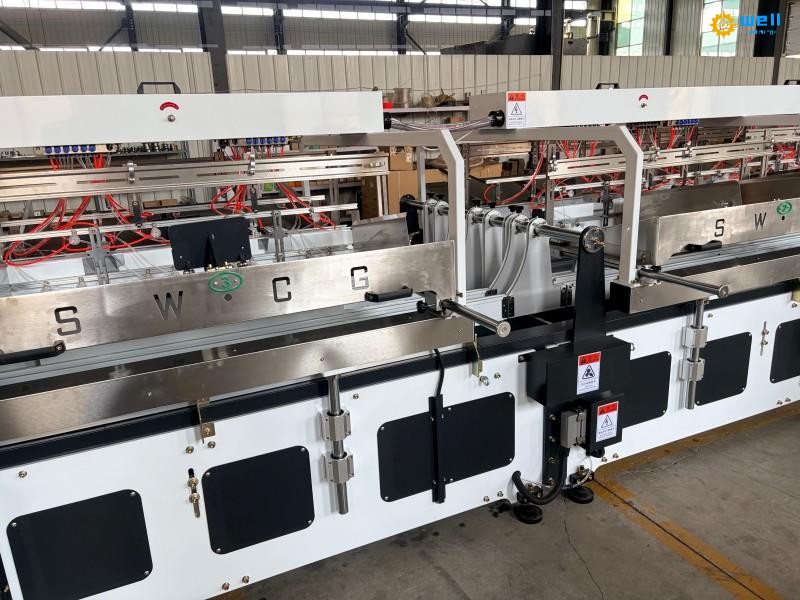

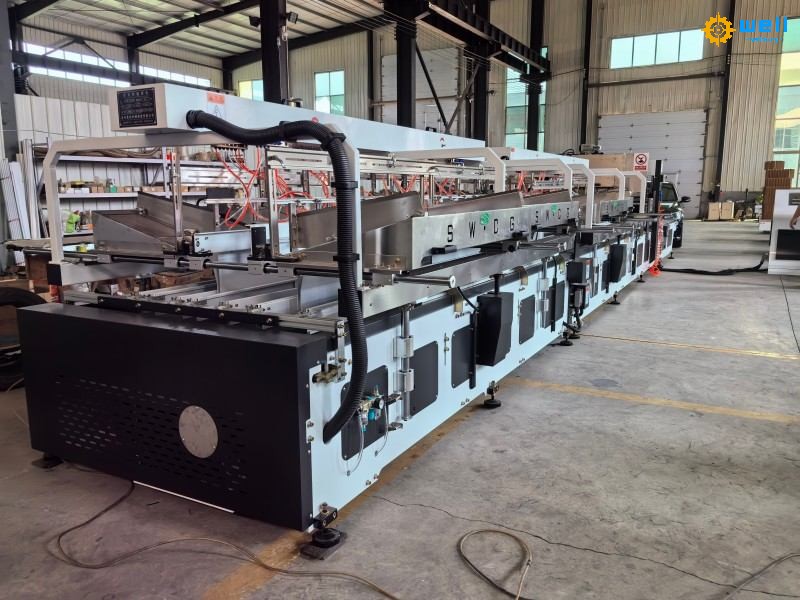

Our automatic partition assembler is dedicated corrugated cardboard processing machinery designed to fabricate carton inner grid partitions for packaging fragile items. It fully substitutes slow manual assembly by automatic vertical and horizontal paper feeding, accurately engaging pre-scored cardboard panels into neat cross separations in continuous operation.

Adopting PLC touch screen control and servo motor drive together with reliable pneumatic components, the machine allows flexible adjustment of partition size, gap and cardboard thickness to suit bottles, ceramics, fruits, electronic parts and glass products. It greatly lowers labor expenditure and lifts production efficiency far above manual operation, while consistent finished size effectively avoids goods collision and damage during transportation. With robust machine frame, convenient parameter adjustment and low malfunction rate, the equipment holds CE certification, suitable for large-scale carton manufacturing plants and integrated corrugated production workflows.

Certification : ISO9001 ,CE

Application : Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food

After- Sales Service Provided: Overseas Third-Party Support Available

Automatic Grade: Automatic

Send email to us Download as PDF

Product Detail

Product Tags

bottle carton box partition assembly machine

automatic corrugated partition assembly machine design feature:

* The longitudinal vacuum suction is adsorbed to the paper
* Transverse pneumatic to the paper, accurate and fast
* Vertical longitudinal ically of the paper frame
* The lifting of the transverse feed paper supply workbench adopts electric adjustment
* Electrically adjust the height of the transverse lattice panel
* Cross the paper vertically and horizontally
* Suitable for a variety of box partition, block automatic insertion
* Double plex paper, double efficiency
* The comprehensive use of gas control and electric control ensures the advancement of equipment control
* PLC human-machine interface, easy to operate

Name	Unit	Data
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	210~450
Clapboard Height: C	mm	70~300
Horizontal clapboard distance: D	mm	20~400
Lengthways clapboard distance:E	mm	45-800
Lengthways sheets No.	pcs	1-6
Horizontal clapboard No.	pcs	1-21
Carton inserting mouth width:F	mm	＞board thickness
Carton thickness:G	mm	1.5~8mm
