Our hard corrugated box board production line has complete models. Please consult customer service for detailed customization parameters

Three (five) layer corrugated board production line

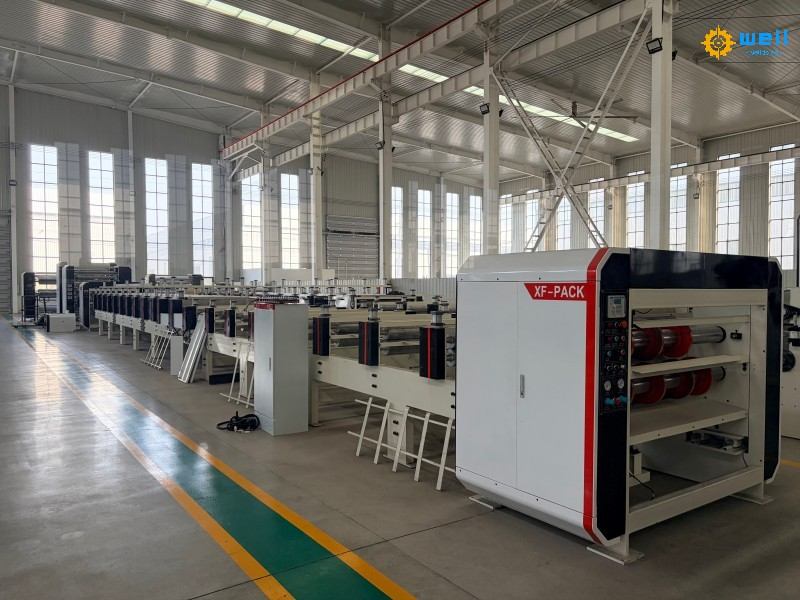

The hard corrugated board production line is composed of suction corrugated machine, hydraulic base paper rack, automatic paper receiving machine, gluing machine, dryer, straight knife paper cutter, single (double) layer preheating cylinder and corner plate receiving platform, with a mechanical speed of 120m / min. It is characterized by a high degree of automation. The automatic paper receiving machine realizes non-stop paper roll change, simple and convenient operation, high efficiency and high paperboard quality. In particular, the patented product “Wan knife paper cutter” of our company adopts German motion control technology to improve the cutting accuracy of paperboard, realize the over cutting of paperboard and save paper materials.

Model: CX Series 2000 three-layer corrugated board production line:
1. Maximum production width of corrugated board: 2000mm
2. Design speed: 150m / min
3. Economic speed: 100-120m / min (third floor)
Note: the paper for production line speed test shall meet the following requirements: (the surface temperature of the equipment shall not be less than 172)
The grade of base paper shall not be lower than grade B. the water content of base paper is about 11 ± 2
Face paper: 100250g / m2 core paper: 100 — 250G / m2
Tile paper: 100200g / m2
4. Corrugated type combination: A, C, B, e (or selected by the customer)
5. Requirements for steam:
Maximum pressure: 1.2MPa
Common pressure: 0.8-1.1mpa
6. Power supply: 380V 50Hz three-phase four wire system
7. Total installed power of equipment: About 200kW, actual power consumption: about 180kW
8. Equipment area: About 60m × 10m × 4m (the specific length shall be subject to the foundation drawing)
9. Paper output direction of equipment: set the drive left or right according to the user’s workshop
10. Applicability of the equipment: Grade A, B and C domestic base paper or imported base paper can be used
