Automatic paper corner board making machine

Automatic paper corner board making machine - Welldoing trading limited

Short Description:

Delivery Time	45 days	Packaging Details	Stretch film
Product type	paper edge protector machine	Wide	20-100mm
Thick	2-8mm	Control mode	Frequency control
Coverage:L*W	22m*3m	Total weight	4590kg

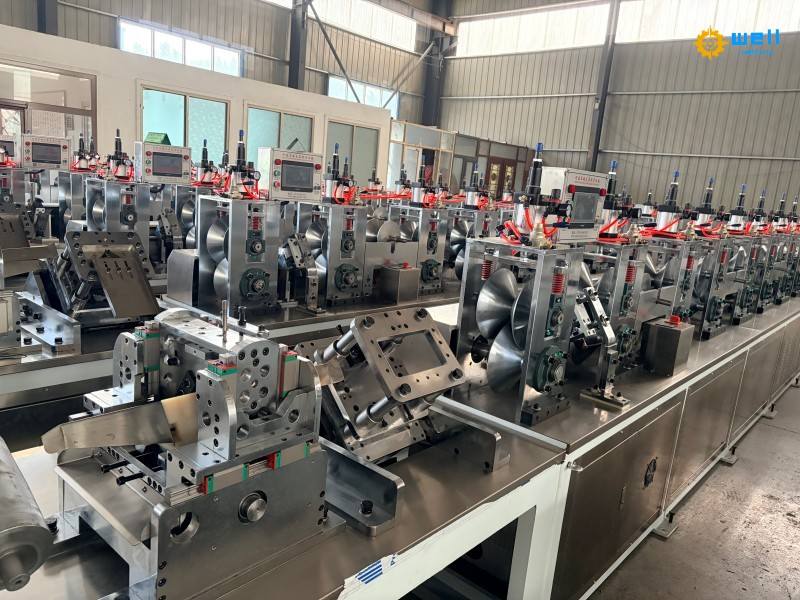

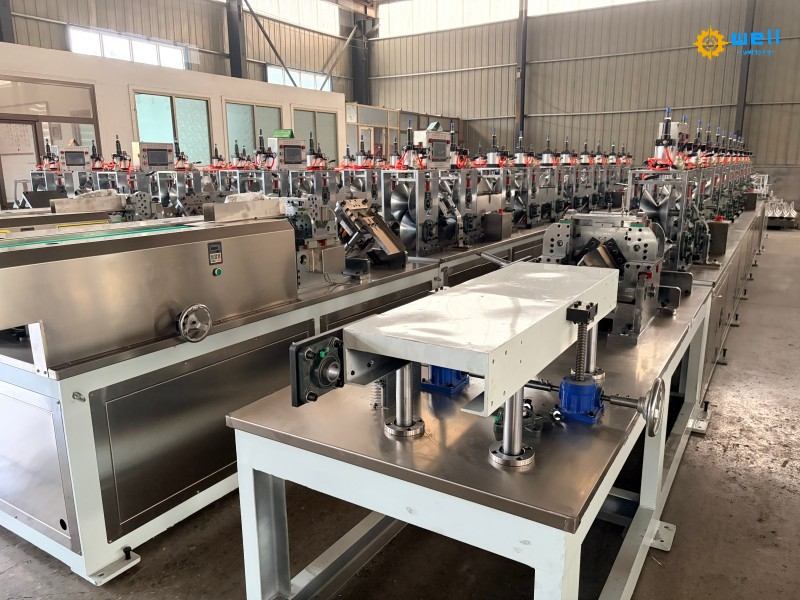

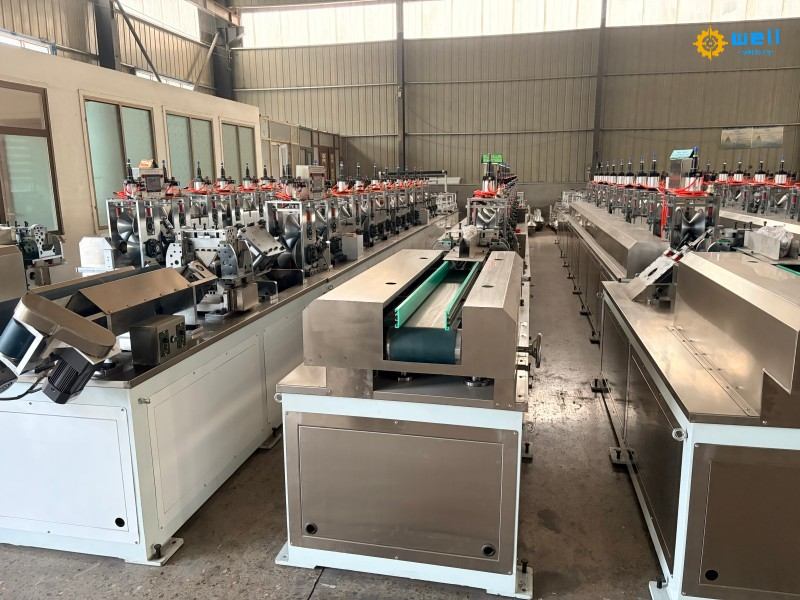

The paper edge protector machine, also named paper angle board machine, is professional packaging machinery to produce sturdy L-shaped, V-shaped and U-shaped paper corner guards from multi-layer kraft paper rolls. It integrates automatic paper feeding, even gluing, rolling forming, servo precision cutting and finished product stacking in one continuous production line, controlled by PLC and touch screen for simple parameter adjustment and stable running performance.

Adjustable size covers width 25–100mm and thickness 2–10mm, meeting customized packaging demands for pallet cargo, furniture, glass and home appliances. Produced paper edge protectors effectively prevent corner collision, extrusion deformation during storage and shipping, eco-friendly and recyclable without fumigation requirement for overseas shipments. Featuring high running speed, low failure rate and reduced manual labor cost, this CE-certified equipment is an ideal choice for medium and large packaging factories to expand protective packaging production capacity worldwide

Send email to us Download as PDF

Product Detail

Product Tags

automatic paper corner board making machine

1. The processing technology of the ball screw is fine, the clearance between the screw and the screw is moderate, no noise, smooth operation and long service life.

2. The cutting is driven by the crankshaft, and the speed chase and cutting are completed at the same time. Its unique transmission method solves a major problem in the corner protection industry and is in a leading position in the same industry.
3. The synchronous control system PLC is a dimensional control product. This system has fast response, accurate data processing, good stability and strong anti-interference ability. In particular, it has a unique advantage in rapid fly cutting.
4. The man-machine interface is a dimensional control product. This high speed paper angle board making machine is simple and easy to understand, with easy data adjustment and operation.

paper board edge protector machine features:

1. The multi-axis paper holder can take care of discharging multiple paper rolls, and use pneumatic lifting to adjust the height of the paper roll.

2. The angle protector has coaxial transmission, and the transmission parts are quenched and tempered and surface treated.

3. Double cylinder balance pressure regulation. The stroke of the cylinder is adjustable, using frequency conversion, motor, and worm gear reducer.

4. Touch screen and servo system control operation, cutting accuracy is 1000±1MM.

5. The automatic alarm system prompts the fault location to ensure safe operation.

Our service:

Equipment warranty for one year (cylinder parts warranty for three months,the belt,mold,the blade is not not warranty)

1. equipment installation and commissioning after free repair period is one year.

2.free of charge to the customer technical guidance and training of equipment operation and maintenance of the knowledge.

3.from the use of nealect,vandalism,natural disasters damaged and in need of replacement parts of artificial,material fee will be charged.

4.in the warranty period is over, bassed on the parties intend to continue the development of cooperation,we provide lifetime repair service,only charge for the spare parts,material cost.
