automatic paper cardboard partiton assembly machine

automatic paper cardboard partiton assembly machine - Welldoing trading limited

Short Description:

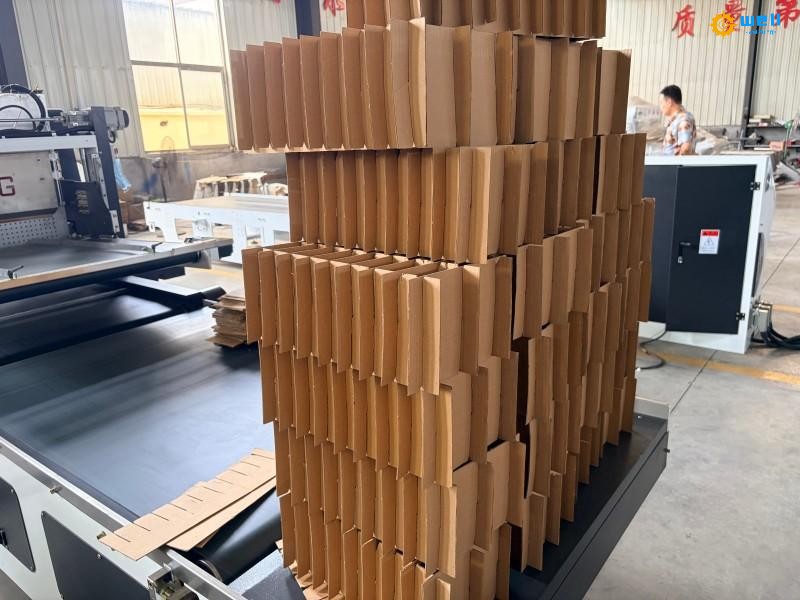

Our automatic partition assembler is dedicated corrugated cardboard processing machinery designed to fabricate carton inner grid partitions for packaging fragile items. It fully substitutes slow manual assembly by automatic vertical and horizontal paper feeding, accurately engaging pre-scored cardboard panels into neat cross separations in continuous operation.

Adopting PLC touch screen control and servo motor drive together with reliable pneumatic components, the machine allows flexible adjustment of partition size, gap and cardboard thickness to suit bottles, ceramics, fruits, electronic parts and glass products. It greatly lowers labor expenditure and lifts production efficiency far above manual operation, while consistent finished size effectively avoids goods collision and damage during transportation. With robust machine frame, convenient parameter adjustment and low malfunction rate, the equipment holds CE certification, suitable for large-scale carton manufacturing plants and integrated corrugated production workflows.

Certification : ISO9001 ,CE

Application : Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food

Adapt to the object: yogurt, fresh milk, fruit juice drinks

Adapt to the industry: catering, food, gifts, crafts

After-sales service: the warranty period is for all one year

Send email to us Download as PDF

Product Detail

Product Tags

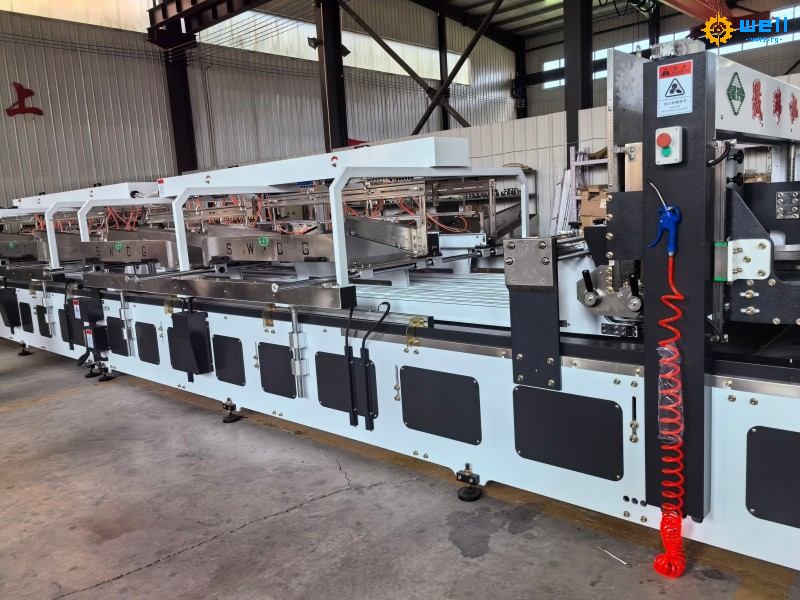

automatic paper cardboard partition assembly machine

automatic carton partition assembly machine

design feature:

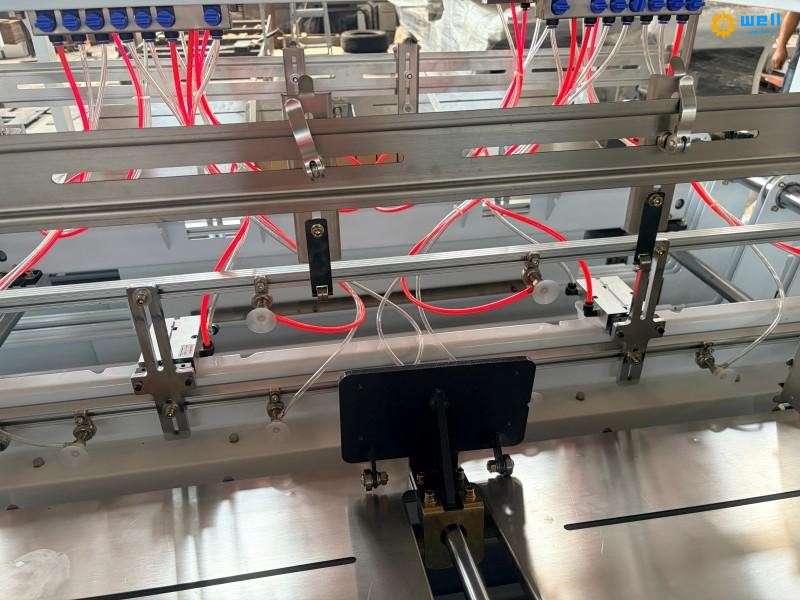

* The longitudinal vacuum suction is adsorbed to the paper
* Transverse pneumatic to the paper, accurate and fast
* Vertical longitudinal ically of the paper frame
* The lifting of the transverse feed paper supply workbench adopts electric adjustment
* Electrically adjust the height of the transverse lattice panel
* Cross the paper vertically and horizontally
* Suitable for a variety of box partition, block automatic insertion
* Double plex paper, double efficiency
* The comprehensive use of gas control and electric control ensures the advancement of equipment control
* PLC human-machine interface, easy to operate

technical parameter:

Name	Unit	Date
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	210~450
Clapboard Height: H	mm	80~300
Lengthways clapboard distance: D	mm	20~400
Horizontal clapboard distance: C	mm	45-850
Lengthways sheets No.	unit	1-6
Horizontal clapboard No.	unit	1-21
Carton inserting mouth width：F	mm	＞board thickness
Carton thickness:K	mm	1.5~8mm
