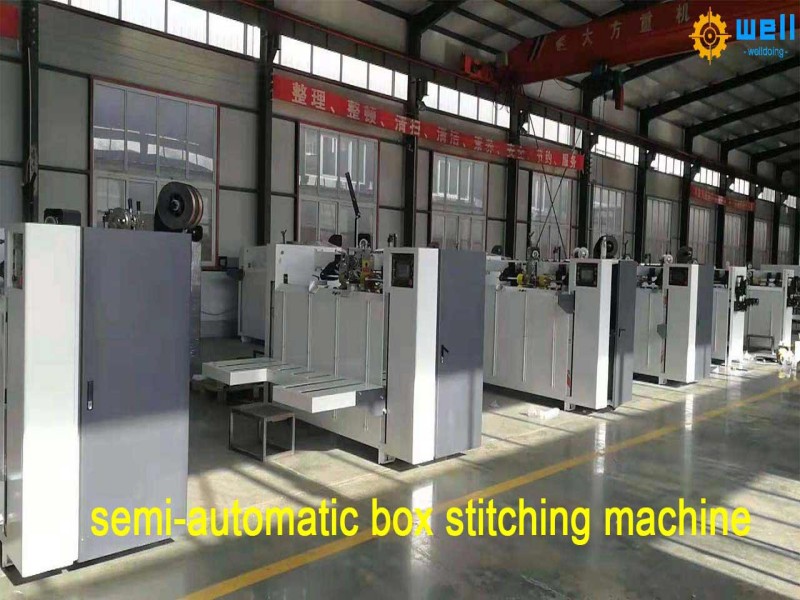

semi automatic 2 pieces joint stitching machine

Double Servo Control Two-Piece Joint Stitcher

Adopt import double servo system.

The machine can stitch single, double , and unequal carton.

Adopt electric controlling to adjust size.

Single nail, double nails, strengthen nail can be fulfill in one time .

Automatic counter ejector.

Suit for large carton, speed stitching and labor saving.

Set the program in computer to adjust stitching pitch automatically.

Adopt electric control to adjust size, fault instruction will appear in the LCD

Our product can be generally applied to the three-layer or five-layer large cardboard boxes as well as the uncovered ones with bottom. As for the seven-layer boxes, the equipment needs to be customized.

Stitching pitch(small-big)30mm-120mm can be arbitrary regulation.

Machine speed: 500 stitches /minute.

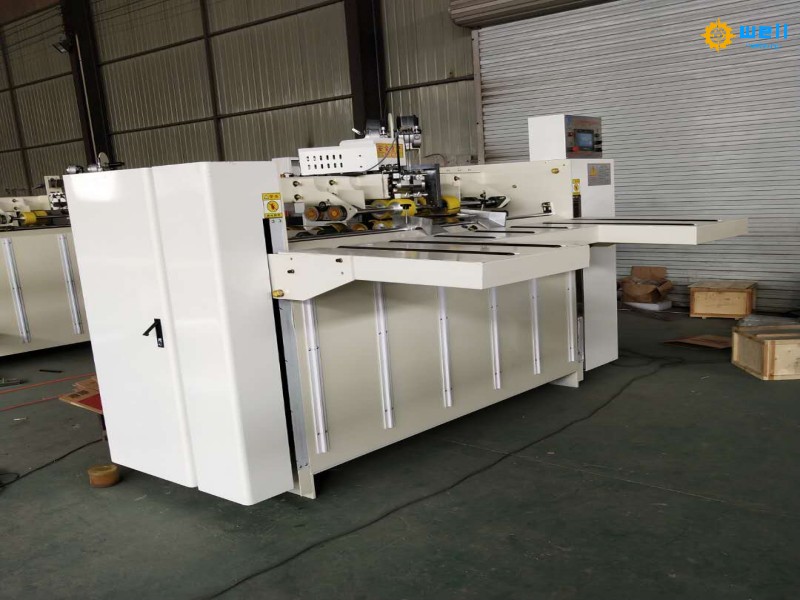

semi automatic carton stitcher machine

♦ photoelectric and proximity switches adopt Japanese omron brand.

♦ bottom die, the blade is made of Japanese tungsten steel (wear-resisting).

♦ the whole set of nail head are all made of special steel, computer gong precision processing.

♦ single stitching, double stitching, reinforcing stitching(double stitching at both ends and single stitching at the middle part)can be finished in one time, which can meet different requirements of different customers.

♦ semi automatic 2 piece stitching machine only takes one minute to change the carton size and adjust the carton stitching distance, which greatly saves time and is convenient to operate.

♦ the front feeding part is automatically counted, and the feeding table is equipped with photoelectric induction device, which automatically rises when feeding.

♦ the back section is equipped with automatic counting function, and the finished pieces can be stacked and sent to the end of the transmission machine according to the set quantity(2-99), which is convenient for packing and binding

♦ electric adjustment of the clearance of the paper press rubber wheel.

♦ machine order type adjustment, can store 100 orders.

♦ protection function of isolating transformer for the whole machine;

♦ automatic wire feeding svstem, 20KG flat wire, save time.

♦ front and rear two-way baffle configuration,can order lideless carton and small cardboard box. color box.
