If you are searching for a reliable  automatic paper angle board machine to expand your packaging consumable production line, our PLC controlled paper angle board making machine delivers stable, high-volume production of L-shaped paper corner protectors for global packaging, logistics and manufacturing clients. This fully automatic paper edge protector production line is engineered to replace outdated semi-automatic models, cut labor input, stabilize product tolerance, and help packaging factories win more bulk orders for pallet packaging, cargo corner protection and export packing solutions.

What is an automatic paper angle board machine? Also widely named paper corner protector machine or paper edge board making machine, it continuously laminates multi-layer kraft paper, applies glue evenly, forms 90-degree L profiles, cures and cuts finished paper angle boards to preset lengths in one integrated workflow. Paper angle boards are eco-friendly, recyclable rigid packaging profiles, used to reinforce pallet loads, prevent strap damage, absorb impact during transit and avoid corner crush for finished goods. As plastic packaging restrictions tighten worldwide, demand for paper angle board products keeps rising, making this paper angle board making machine a profitable investment for packaging converters, logistics material suppliers and paper product manufacturers.

The core competitive edge of this Paper edge protector making machine lies in its industrial PLC control system paired with HMI touch screen. All key production parameters are programmable and stored digitally: production speed, glue dosage, forming pressure, cutting length, layer combination and counting targets can be adjusted directly on the panel without complicated mechanical re-calibration. The PLC system supports real-time data monitoring, automatic fault alarm and self-diagnosis. When paper breakage, glue shortage or abnormal speed occurs, the automatic paper angle board making machine triggers an alert and slows or stops automatically to reduce waste and protect rollers and cutting units. Compared with traditional frequency-only controlled machines, PLC control greatly reduces operation difficulty, lowers operator skill requirements, and guarantees uniform dimension for every batch of paper angle boards, which is critical for buyers requiring consistent corner protector quality for export shipments.

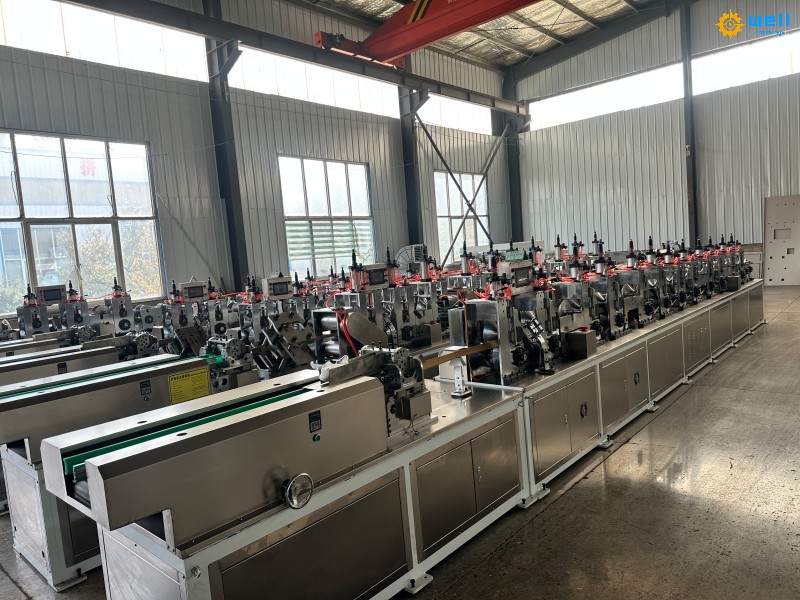

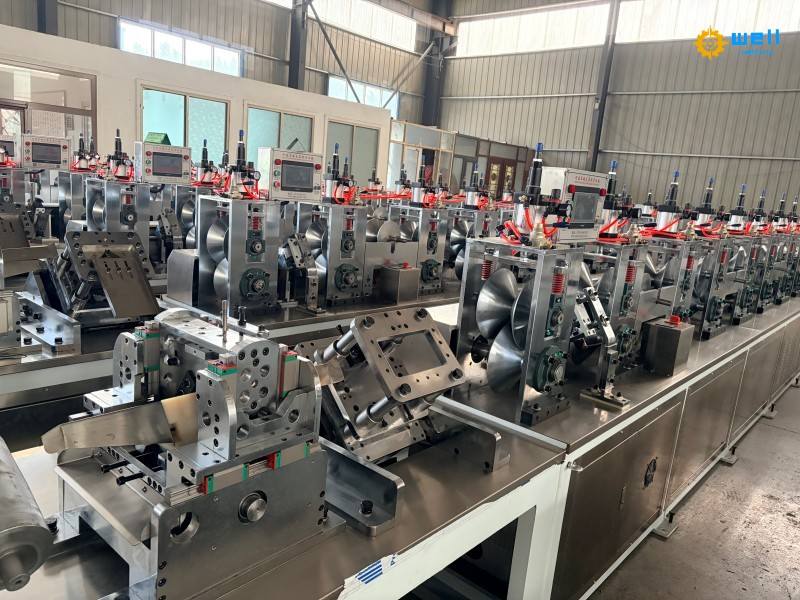

This automatic paper angle board making machine covers flexible size ranges to fit diverse packaging requirements. Standard side width ranges from 25 mm to 100 mm, wall thickness from 2 mm to 8 mm, finished cutting length customizable from 100 mm up to 6000 mm. We also support custom moulds for special U-shaped or V-shaped paper edge protectors. The production speed is adjustable, reaching up to 40–60 meters per minute for stable continuous running. The whole line includes automatic paper unwinding rack, glue coating station, laminating unit, forming roller group, heating drying section, servo flying cutter, finished product conveyor and counting stacker. From raw kraft paper roll feeding to stacked finished paper angle boards, the whole process runs automatically with minimal manual intervention. One operator can supervise multiple automatic paper angle board machines at the same time, directly cutting your production labor cost and improving overall equipment efficiency.

Consistent product quality is another highlight of our PLC controlled paper angle board making machine. Precision hardened forming rollers keep the 90-degree angle accurate, and the pneumatic pressure adjustment system ensures tight lamination without delamination or warping. The servo flying cutter executes clean, burr-free cuts, avoiding uneven ends that would cause problems during automatic packing and strapping. The glue supply system adopts stable circulating feeding to prevent glue blockage and uneven coating, so finished paper angle boards maintain high compressive strength and impact resistance. For customers needing branding, we can integrate an inline printing module to print logos, batch numbers or company marks directly on paper corner protectors, adding extra value to your packaging materials and differentiating your products from generic suppliers.

Why choose our automatic paper angle board machine over competitors? First, the PLC control program is optimized for long-hour non-stop industrial operation, not only easy to operate but also convenient for after-sales remote troubleshooting and parameter upgrade. Second, key transmission parts use wear-resistant alloy materials and precision bearings, extending service life and reducing frequent spare part replacement. Third, the machine layout is compact and easy for factory installation; we provide complete installation guidance, operator training and long-term technical support. Fourth, this paper angle board making machine accepts recycled kraft paper as raw material, helping you lower raw material cost while catering to global green packaging trends. Paper angle boards are 100% recyclable, biodegradable and a perfect alternative to foam, plastic corner caps and wooden protectors, ideal for customers targeting EU, North America and other markets with strict environmental packaging rules.

The finished paper angle boards produced by this automatic paper angle board machine serve a wide spectrum of downstream industries. In pallet logistics and warehousing, they reinforce stacked cartons and prevent strapping pressure from cutting into product edges. For furniture, wooden door and cabinet packaging, they protect vulnerable corners from scratches and collision damage in container shipping. Home appliance, ceramic tile, glass panel and metal profile manufacturers use paper corner protectors to reduce transit claim rates. Building material, solar panel and printed goods packaging also rely heavily on L-shaped paper edge boards. Whether you supply standard packaging materials or custom corner protectors for high-value export goods, this automatic paper angle board making machine can support diversified order demands and fast specification changeover. Switching between different sizes normally takes only 15–30 minutes after PLC parameter reset, perfect for mixed small-batch and mass production schedules.

For packaging business owners considering equipment investment, selecting a stable automatic paper angle board machine directly determines your product quality, delivery capability and profit margin. Low-cost simple machines often suffer from unstable cutting, inconsistent forming, frequent shutdowns and high reject rates, which hurt your reputation and waste raw paper and glue. Our PLC controlled paper angle board making machine is built for long-term commercial production. It balances high speed, precision and affordability, and we tailor configurations according to your target output, product specifications and factory power condition.

If you are ready to expand your packaging material plant or start a new paper corner protector production project, our paper edge protector machine is a solid, high-ROI solution. Contact us today to get detailed technical datasheets, factory test videos, layout drawings and a customized quotation. We can arrange online machine demonstrations and answer your questions about lead time, warranty, spare parts and installation service. Invest in this PLC controlled paper angle board making machine and build a stable supply of eco-friendly paper edge protectors to capture growing packaging market orders worldwide.
