If you plan to invest in a paper tube making machine for your packaging, textile, film or printing business, the first critical decision is picking between a spiral paper tube machine and a parallel paper tube machine. Both types of automatic paper tube making machine produce kraft paper cores and paper tubes, yet they differ greatly in working principle, finished tube performance, production speed, cost and suitable applications. Choosing the wrong paper tube machine will lead to low output, unstable tube quality and wasted investment. This buying guide breaks down spiral and parallel paper tube machines, helping you select the best paper tube making machine that matches your product specifications and production volume.
What Is a Spiral Paper Tube Making Machine?

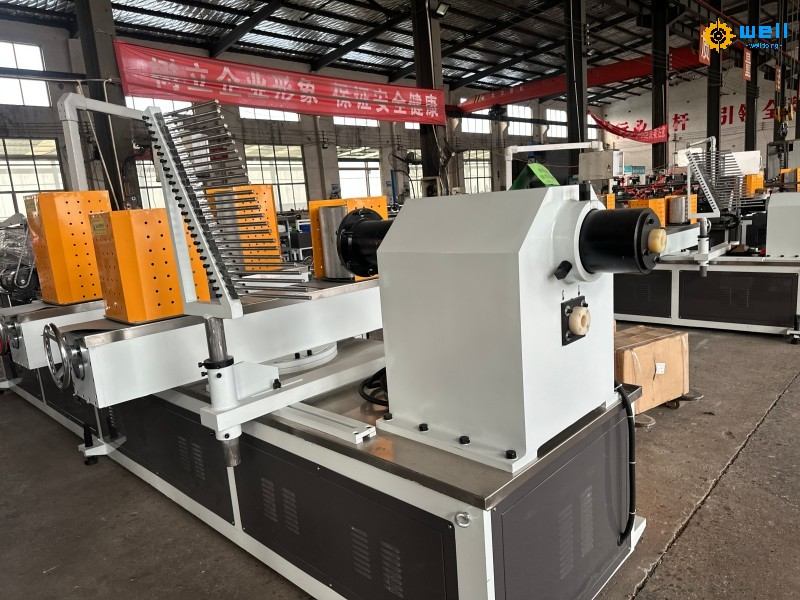

A spiral paper tube making machine, also known as spiral winding paper core machine, feeds narrow kraft paper strips onto a rotating mandrel at a fixed diagonal angle. Paper layers overlap spirally and bond with adhesive continuously. The machine forms endless long paper tubes, then cuts them into required lengths automatically by flying cutting system.
Spiral paper tube making machines are the most widely used paper tube making equipment on the global market. Its biggest advantages are high continuous speed, flexible diameter adjustment and strong radial crush resistance. The interlaced paper fiber structure makes spiral wound tubes hard to collapse under radial pressure. This paper tube making machine supports a wide diameter range, from tiny toilet paper cores, BOPP film cores, textile yarn cores to large industrial packaging tubes. Most automatic spiral paper tube making machines adopt PLC control, adjustable winding angles and multi-reel paper feeding design, which reduces manual operation and improves consistency for mass production.
The limitation of spiral paper tube products lies in the diagonal spiral seam on the tube surface. While the seam does not affect mechanical strength, it is not ideal for high-end printing or luxury packaging tubes that require fully smooth outer surfaces.
What Is a Parallel Paper Tube Making Machine (Convolute Paper Tube Machine)?
Parallel paper tube making machine, also called convolute paper tube machine, winds full-width paper sheets parallel to the mandrel axis. Paper layers wrap around the mandrel straightly, forming a straight seam parallel to the tube length instead of a diagonal spiral seam.
Compared with spiral paper tube making machine, parallel paper tube machine delivers an ultra-smooth tube exterior with tight dimensional tolerance. The finished tube has excellent longitudinal rigidity and straightness, perfect for precision applications. Parallel wound paper tubes can bear heavy vertical stacking load, and the flat surface supports high-quality offset printing, labeling and surface finishing, widely used for gift paper cans, mailing tubes, paint roller cores and premium cosmetic packaging tubes.
However, parallel paper tube making machine has obvious drawbacks in productivity. Its production cycle is slower, and raw paper consumption is less flexible. Normally it suits shorter tube lengths and thicker wall requirements. The equipment and production cost per tube are higher than spiral paper tube making machine, so it is more fit for low-to-medium batch high-value orders instead of huge mass production.
Spiral VS Parallel Paper Tube Making Machine: Core Comparison
-
Winding Structure & Tube Surface
Spiral paper tube making machine: diagonal overlapping seam; excellent crush strength; surface with spiral trace.
Parallel paper tube making machine: straight parallel seam; smooth seamless-looking surface, great for printing.
- Production Capacity
sprial paper tube making machine: high continuous speed, suitable for large-volume 24/7 mass production.
Parallel paper tube making machine: lower speed, for small and medium batch high-precision products.
-
Product Size Range
Spiral paper tube machine: flexible diameter and length, can make extra-long tubes, covers most industrial core sizes.
Parallel paper tube machine: better for shorter tubes, thicker wall and medium-large diameter tubes with strict tolerance.
-
Typical Applications

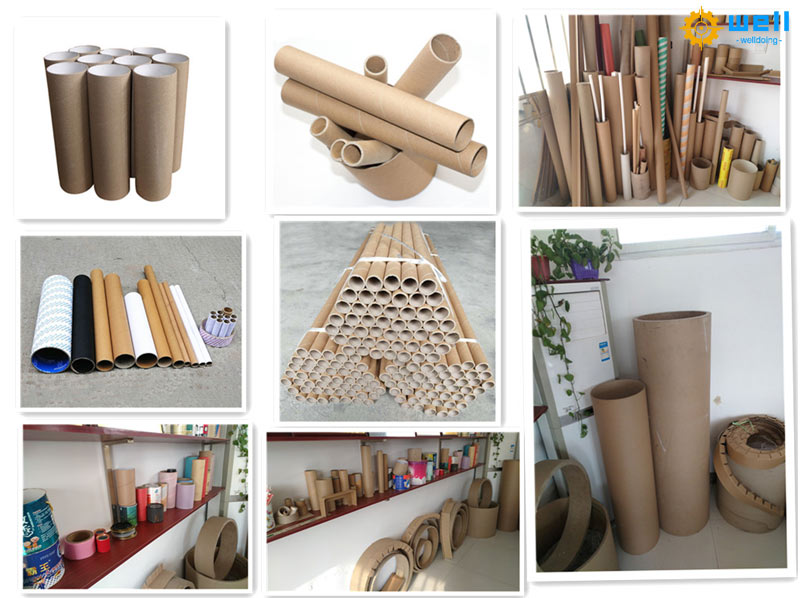

Spiral wound tubes: plastic film cores, textile yarn cores, toilet paper cores, carpet cores, general industrial packaging cores.
Parallel wound tubes: mailing tubes, luxury round paper cans, paint roller tubes, high-end printed packaging tubes, heavy stacking shipping tubes.
-
Investment & Running Cost
Spiral paper tube making machine: lower unit production cost, fast ROI for factories with big orders.
Parallel paper tube making machine: higher machine price and per-piece manufacturing cost, targeting high-margin packaging products.
Key Factors to Select Your Paper Tube Making Machine
1. Your finished paper tube use case
If your main products are film cores, textile cores or disposable industrial paper cores with huge monthly demand, the spiral paper tube making machine is your priority choice. If you produce printed round paper cans, postal mailing tubes and premium retail packaging tubes requiring flawless printable surface, go for parallel paper tube machine.
2. Required tube dimension and wall thickness
Check inner diameter, wall thickness and cutting length. Spiral paper tube making machine handles a broader range of diameters. Parallel paper tube machine performs better when you need thick-wall, short tubes with strict roundness and end flatness.
3. Monthly production output
High-volume manufacturers should choose automatic spiral paper tube making machine with multi-head options and synchronized flying cutter. If your order quantity is small with customized premium tubes, parallel paper tube making machine meets your quality requirement without over-investing in high-speed mass production lines.
4. Budget and long-term operating cost
Do not only compare the initial machine price of paper tube making machine. Evaluate raw paper adaptability, glue consumption, energy cost, spare parts replacement and labor cost. Spiral paper tube making machine brings lower operational cost in continuous mass production.
5. Automation level and after-sales service
Top-grade paper tube making machines use PLC, servo drive and human-machine interface for easy parameter adjustment. Reliable suppliers provide machine installation, operator training and global after-sales support, which reduce downtime of your paper tube production line.
Conclusion
There is no absolute betterCNC paper tube core making machine between spiral and parallel models; the best choice depends on your product portfolio and business goals.
Spiral paper tube making machine dominates mass production of standard industrial paper cores, featuring high speed, wide size adaptability and cost-effective operation. Parallel paper tube making machine shines for high-value printed packaging tubes that demand ultra-smooth surface and precise dimensional accuracy.
When purchasing your paper tube making machine, share your tube diameter, wall thickness, length, monthly capacity and end-use applications with the machine manufacturer. Professional suppliers can customize the winding system, paper reel stands, glue system and cutting unit, delivering a suitable paper tube making machine to maximize your production profit.
