For small and mid-sized corrugated carton factories looking for stable, cost-effective inline packaging equipment, the Chain feeder multicolor printer slotter die cutter machine remains one of the most popular semi-automatic workhorses in carton production lines. Many packaging buyers compare it with lead edge feed printer slotter die cutters and wonder exactly how this chain-feed flexo machine runs from raw corrugated board to finished blank cartons in one continuous pass. This article breaks down its working workflow, core units, technical logic, advantages and suitable production scenarios to help you judge whether a chain feeder printer slotter die cutter fits your carton manufacturing plant.

The whole machine is a combined flexographic processing system that integrates chain feeding, multi-color water-based ink printing, creasing, slotting, trimming and rotary die cutting in one frame. Unlike friction feed or vacuum lead edge feed models, its core feature lies in the mechanical chain conveying system, which is specially designed to handle warped, recycled and mixed 3-ply, 5-ply corrugated sheets stably without frequent misfeeding or double feeding. It is widely used for shipping cartons, fruit boxes, pizza boxes, commodity packaging and regular RSC corrugated boxes, supporting 2-color, 3-color and 4-color customized printing according to brand requirements

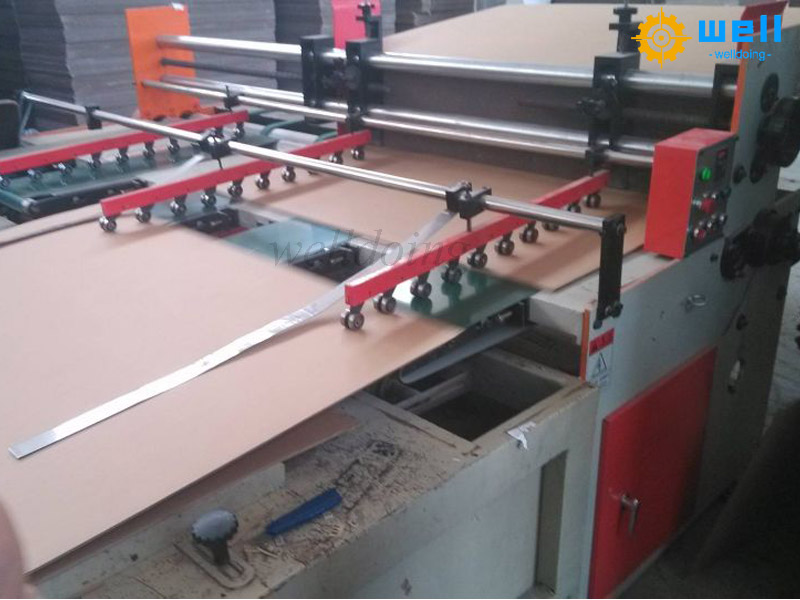

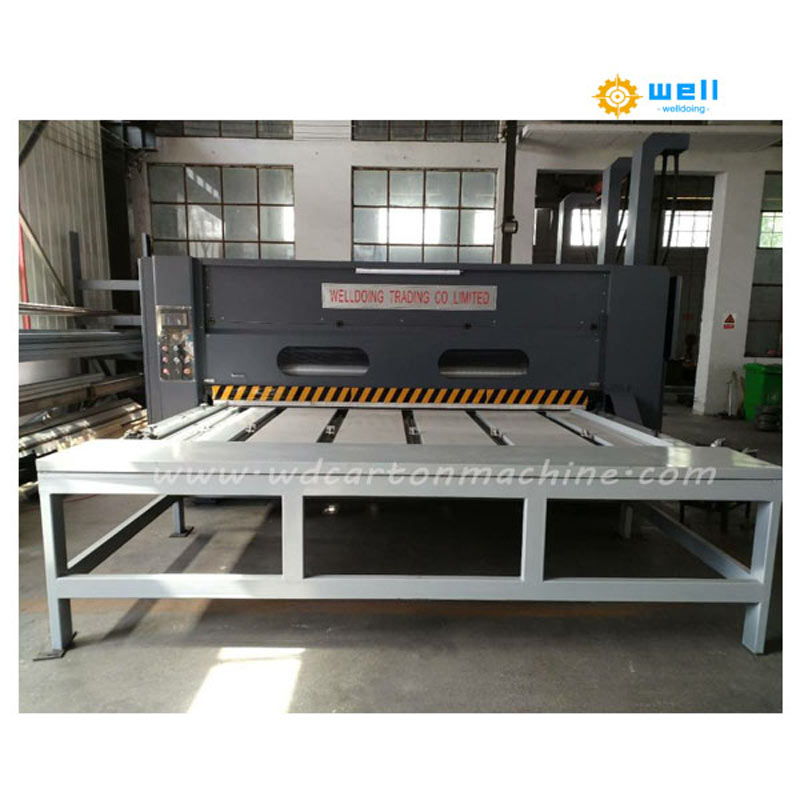

The first stage of operation is the chain feeder station, the foundation of the whole machine. Operators stack corrugated cardboard manually on the feeding worktable. Adjustable side baffles align sheets to keep consistent lateral positioning, and parallel conveyor chains grip and push each cardboard forward at a synchronized speed. Multiple chain tracks share the conveying load, so heavy or uneven corrugated board will not skew during transfer. The chain feeding system uses PLC-linked speed matching with downstream printing units. When the chain feed flexo printer die cutter machine stops temporarily, the chain pauses synchronously to avoid registration errors. Compared with automatic lead edge feeders, the chain feeder structure is simpler, easier to maintain and carries a lower investment threshold, which makes it preferred by new carton factories with limited budgets and mixed order sizes.

After stable feeding, cardboard enters the multi-color flexo printing units. Each color group is an independent printing station equipped with anilox rollers, printing cylinders, rubber printing plates and water-based ink circulation tanks. The machine adopts planetary gear phase adjustment, supporting 360-degree electric registration adjustment whether running or stationary. Operators set printing positions, color registration and ink thickness via the touchscreen control panel. An anti-drying ink device separates ink rollers automatically when the machine stops, preventing water-based ink from crusting on the plate and reducing plate cleaning frequency. The flexo printing unit prints logos, barcodes, handling marks, product texts and decorative patterns directly on corrugated surfaces, with stable printing accuracy for bulk carton orders

Once printing is finished, the cardboard moves to the slotting and creasing unit. This station completes scoring and slotting simultaneously. Hard chrome plated scoring shafts press neat crease lines on the board for clean folding later; slotting knives cut vertical grooves for carton flaps, tabs and locking joints. Adjustable knife spacing and slot depth adapt to different box heights and flute types. High-precision helical gears drive the slotter assembly, running smoothly with low noise and long service life. Well-processed creases and slots prevent carton cracking during folding in the subsequent folder gluer process, lowering your reject rate

The final processing section is the rotary die cutter unit, which shapes special carton outlines, handle holes, ventilation openings and window cutouts. The rotary die cylinder mounts cutting rubber and steel rules. As the board passes through the die pair, it cuts custom contours in one rotation. The die-cut phase also supports digital fine adjustment to align cut shapes precisely with pre-printed graphics. After die cutting, finished carton blanks are discharged and stacked at the outlet, ready for folding, gluing and bundling. The whole process removes repeated handling between separate printing machines, slotters and die cutters, greatly shortening the production cycle of each batch

Many carton manufacturers choose the semi automatic ink printing die cuttingslotting machine for its unique strengths. First, the chain feed mechanism tolerates poor-quality recycled corrugated board better than vacuum feeders. Second, combined multi-process design saves workshop space and labor cost. Third, spare parts are easy to source and daily maintenance is straightforward. It runs steadily for medium batch orders, ideal for job shops with frequent size and pattern changes. It is important to note that chain feed models are semi-automatic, so they are not the best pick for ultra-high-speed mass production requiring fully automatic non-stop feeding.

In summary, the chain feeder multicolor printer slotter die cutter machine works by relying on synchronized chain conveying to carry corrugated sheets sequentially through flexo printing, creasing, slotting and rotary die cutting. It delivers an all-in-one semi-automatic carton blank solution for small to medium packaging factories. If you produce regular corrugated boxes with multi-color printing demands and prioritize stable performance and reasonable cost, this chain feed printer slotter die cutter is a practical option to upgrade your carton production line.
