In modern corrugated packaging manufacturing, the carton partition assembling machine has become an indispensable automated core device for packaging factories. It specially solves the pain points of low efficiency, high labor cost and unstable product quality in manual carton clapboard assembly. Many packaging enterprise buyers focus on its core working principle — auto clapboard cross interlocking technology, which determines the machine’s assembly accuracy, operating speed and application range. This article will deeply explain the working logic, core advantages and application value of the automatic cross interlocking function of the carton partition assembling machine, helping you fully understand its industrial advantages.
Different from traditional semi-automatic partition assembly equipment that requires manual auxiliary insertion and alignment, the fully automatic carton partition assembling machine adopts upgraded synchronous longitudinal and transverse feeding & cross interlocking molding technology. It can complete automatic feeding, precise positioning, cross insertion, tight interlocking and finished partition output of pre-slotted corrugated clapboards in one continuous process, completely realizing unmanned automatic operation of carton grid assembly.
Core Working Principle of Auto Clapboard Cross Interlocking
The auto clapboard cross interlocking system is the core functional module of the high-efficiencycarton partition assembling machine. The whole working process is controlled by mature PLC intelligent system and high-precision servo drive system, with stable operation and zero error alignment. The entire workflow is divided into four standard links, realizing standardized and automated molding of carton partitions.
First is automatic material feeding and sorting. The machine is equipped with independent longitudinal and transverse feeding systems. The vertical feeding unit adopts vacuum adsorption technology to stably absorb and convey vertical corrugated clapboards, avoiding material deviation and damage. The horizontal feeding unit uses servo precision feeding mode to accurately transport horizontal partition sheets. All materials are pre-slotted in advance, and the machine automatically sorts and arranges the clapboards according to the set grid specifications, laying a foundation for subsequent cross assembly.
Second is intelligent positioning and slot alignment. Equipped with high-sensitivity infrared sensors and mechanical positioning guides, the automatic partition assembling machinery monitors the material position in real time. It automatically calibrates the horizontal and vertical clapboards to ensure that the reserved slots of longitudinal and transverse partition sheets are completely aligned. The electric lifting structure of the feeding shaft and workbench can adjust the height and spacing in real time according to different partition sizes, adapting to various customized grid requirements.

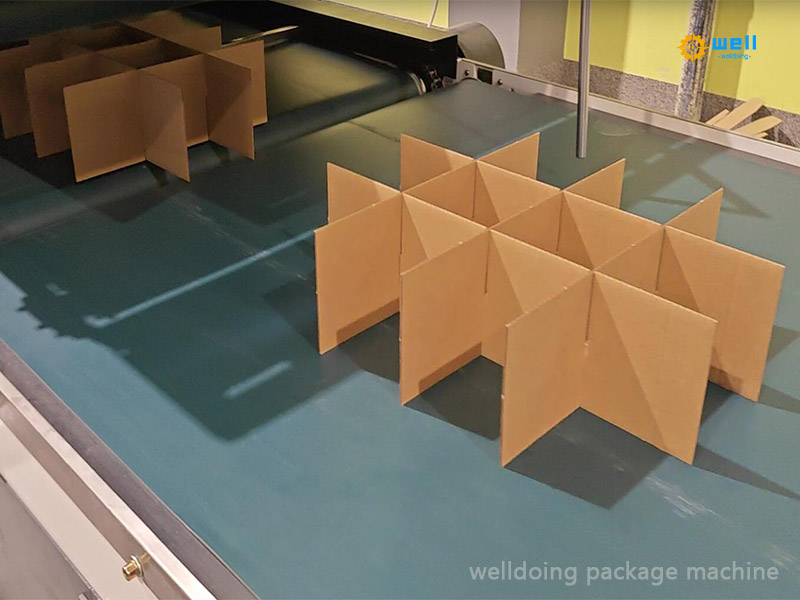

Third is automatic cross interlocking molding. This is the key step of the entire equipment operation. The machine drives the aligned longitudinal and transverse clapboards to perform synchronous cross insertion. Through mechanical precise propulsion, the vertical and horizontal partition sheets are tightly embedded and interlocked at the slots, forming a stable integrated grid structure. Unlike manual assembly with loose gaps and irregular splicing, the mechanical cross interlocking structure is uniform in force and neat in shape, effectively avoiding partition deformation and loose falling off.
The last step is finished product output and stacking. After the cross interlocking assembly is completed, the qualified carton partition grids are automatically output through the conveying platform. The equipment supports continuous cyclic operation without frequent shutdown adjustment, realizing uninterrupted mass production of carton clapboards.
Unique Advantages of Auto Cross Interlocking Carton Partition Assembling Machine
Compared with manual assembly and traditional semi-automatic equipment, the upgraded carton partition assembling machine with auto cross interlocking technology has obvious competitive advantages in production efficiency, product quality and cost control, which perfectly meets the large-scale and high-precision production needs of modern packaging enterprises.
In terms of production efficiency, the fully automatic cross interlocking operation eliminates manual handling, alignment and insertion links. The equipment runs stably at high speed, with the hourly output far exceeding manual operation. One machine can replace 3-5 skilled workers, greatly saving enterprise labor costs and solving the industry problem of difficult recruitment and high labor expenses.
In terms of assembly quality, the servo-driven cross interlocking system achieves micron-level positioning accuracy. The spliced carton partitions have uniform grid size, tight interlocking structure and flat overall appearance, with no dislocation, gap or deformation. The standardized molded partitions can perfectly match carton packaging, providing stable anti-collision protection for bottled products, glassware, electronic accessories and other fragile items.
In terms of flexibility and applicability, the carton partition assembling machine supports flexible parameter adjustment. Through the HMI touch control panel, operators can quickly switch partition specifications, adjust grid quantity, partition height and spacing. It is compatible with corrugated boards of different thicknesses and various custom partition sizes, widely suitable for food packaging, beverage packaging, electronic packaging, daily chemical packaging and other industries.
In terms of operational stability and safety, the whole machine adopts pneumatic locking and intelligent control system, with automatic alarm and shutdown protection functions in case of material shortage, deviation and failure. The mechanical structure is sturdy and durable, with low failure rate and long service life, reducing later maintenance costs and production downtime losses for enterprises.
Wide Application of Automatic Carton Partition Assembling Machine
The carton partition assembling machine with mature auto clapboard cross interlocking technology is the preferred automated equipment for carton factories and packaging processing enterprises. It is specially used for mass production of various carton inner partitions, box grid inserts and protective clapboards. Whether it is regular single-layer partitions, multi-cell dense grids or special-shaped customized partitions, the equipment can complete efficient and standardized assembly.
To sum up, the core value of the advanced carton partition assembling machine lies in the efficient and stable auto clapboard cross interlocking technology. It realizes the transformation of carton partition production from manual dependence to full automation, effectively improving product qualification rate and production efficiency, and helping packaging enterprises reduce costs, upgrade production processes and enhance market competitiveness. For packaging manufacturers pursuing high efficiency and high-quality automated production, this equipment is an essential cost-effective production solution.
