With the rapid development of global logistics and packaging industry, the demand for safe and environmentally friendly packaging materials is increasing. As a key equipment for producing paper corner protectors, the paper corner protector machine equipment (also known as paper edge protector making machine) has become an indispensable part of modern packaging production lines. This equipment integrates advanced mechanical design and electronic control technology, realizing automated and efficient production of paper corner protectors, which effectively solves the problems of poor load-bearing capacity and easy deformation of traditional carton packaging, and provides reliable protection for goods during transportation and storage.

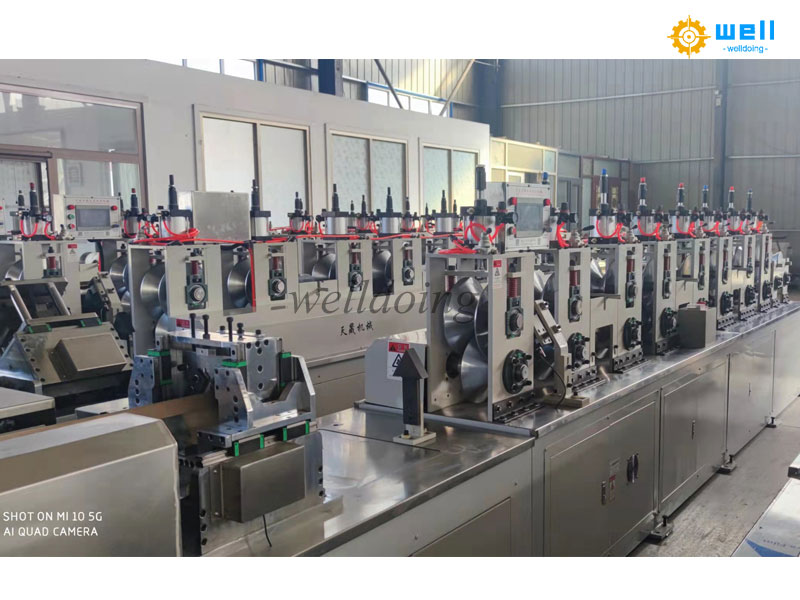

The core structure of the automatic angle corner edge protector machine is composed of several key components, each undertaking an important role in the production process. The main machine body, made of high-strength steel, provides a stable operation platform with a sturdy structure that can withstand pressure and vibration during continuous production. The CNC controller, as the “brain” of the equipment, adopts advanced numerical control or servo control technology, enabling precise setting and adjustment of production parameters such as size, thickness, and production speed, with a user-friendly interface for easy operation. The automatic gluing and recycling system not only ensures uniform gluing to improve bonding strength but also recycles excess glue, reducing raw material waste and environmental pollution. In addition, the forming wheels, cutting system, and automatic stacking device work together to complete the entire production process efficiently.

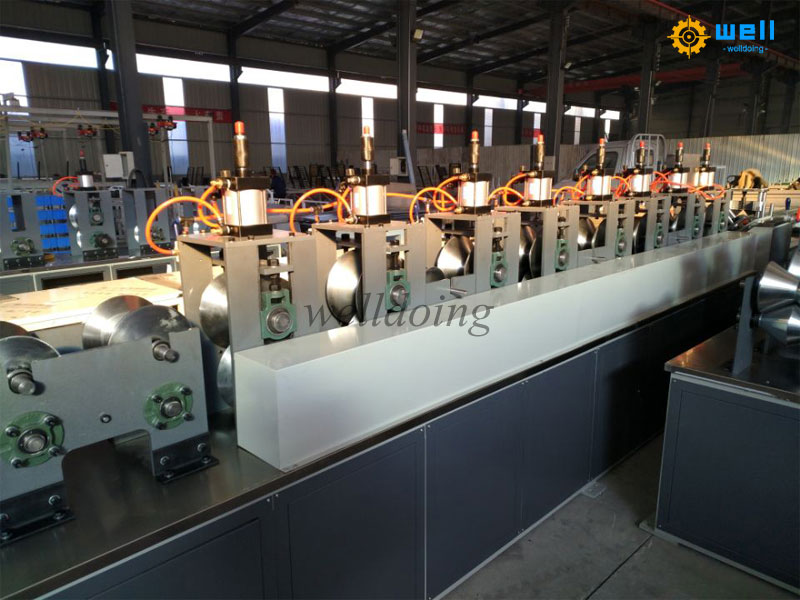

The working process of the paper corner protector machine is automated and streamlined, realizing one-stop production from raw material to finished product. First, multiple rolls of kraft paper are unwound through the pneumatic paper loading rack, which can be replaced without stopping the machine, improving production continuity. Then, the paper passes through the gluing device, where water-based adhesive is evenly applied between layers. Next, the glued paper enters the forming mechanism, where it is pressed into L-shaped, V-shaped, U-shaped, or flat paper corner protectors by multiple sets of hardened and heat-treated forming wheels. After forming, the paper corner protector is cut to the required length by the servo-controlled cutting system with high precision (generally ±0.5mm), and finally, the finished products are automatically sorted and stacked by the automatic stacking system, facilitating subsequent packaging and transportation.
