In the global packaging and printing industry, high-quality hard paperboard is essential for luxury gift boxes, wine boxes, cigarette cases, and high-end book covers. Our High-Efficiency hard paperboard production line integrates advanced technology, precise parameter control and energy-saving design, meeting international standards and your customization needs. Below is a detailed introduction to its core specifications and technical parameters.
Product Specifications: Versatile & Adaptable to Diverse Demands
Our production line is designed for flexibility and practicality, covering a wide range of specifications to adapt to different production scales. It supports multi-layer lamination and thickness customization, suitable for both small-batch and large-scale production, fully meeting global customer needs.
Core Specifications
- Working Width Range: 1200mm – 2200mm (customizable), compatible with various base paper widths to avoid secondary cutting and improve efficiency.
- Lamination Layers: 2-ply to 6-ply optional, maximum grammage 2400 g/㎡ and thickness 5-5.5mm, meeting different hardness requirements.
- Production Capacity: Daily output 30-80 tons (adjustable), hourly output 3.5t-5t, ensuring efficient supply and shorter delivery cycles.
- Finished Product Specifications: Cutting length 500mm-9999mm (stepless adjustment), customizable; finished paperboard meets international standards, replaceable for imported super-thick ones.
- Equipment Dimensions: Total length 30m-40m, width 4.5m-5.5m, height 4.2m; weight 8.5 tons, compact and easy to install.
Technical Parameters: Precision Control & Energy-Saving Efficiency
Our high speed hardboard production line’s core competitiveness lies in advanced technical parameters, ensuring stable operation, high qualification rate and low energy consumption, balancing efficiency, quality and cost.
Key Technical Parameters
|
Parameter Category
|
Specific Parameters
|
Performance Description
|
|
Speed Control
|
Design Speed: 20-150m/min; Working Speed: 0-100m/min (stepless adjustable)
|
Stepless speed regulation adapts to different rhythms; automatic paper splicer ensures continuous production and higher efficiency.
|
|
Cutting Precision
|
±1mm
|

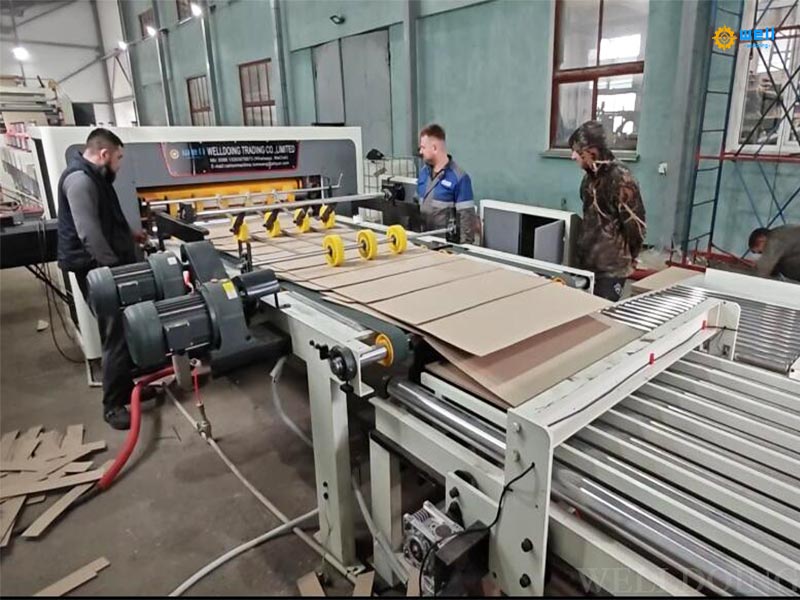

High-precision NC cutting machine ensures uniform size, no burrs and less material waste, meeting high-end packaging needs.
|
|
Heating System
|
Steam/electric heating (optional); Temperature: 140-190℃ (±1.5℃ precision)
|
Independent temperature control ensures firm bonding; steam condensation recovery rate ≥92%, energy-saving and eco-friendly.
|
|
Base Paper Requirements
|
100-650g roll paper; max roll diameter 1400mm, min 400mm
|
Wide raw material adaptability, compatible with kraft paper, test liner, reducing procurement costs.
|
|
Power & Voltage
|
Installed Capacity: 30-150kw; Actual Consumption: 50-80kw; Voltage: 380V 50Hz
|
Energy-saving motor reduces costs; stable voltage adapts to global power standards.
|
|
Control System
|
PLC (Siemens/Schneider optional) + HMI; automatic aligning, tension control, fault alarm
|
Intelligent operation, real-time monitoring, remote debugging, reducing manual and maintenance costs.
|
|
Structural Features
|

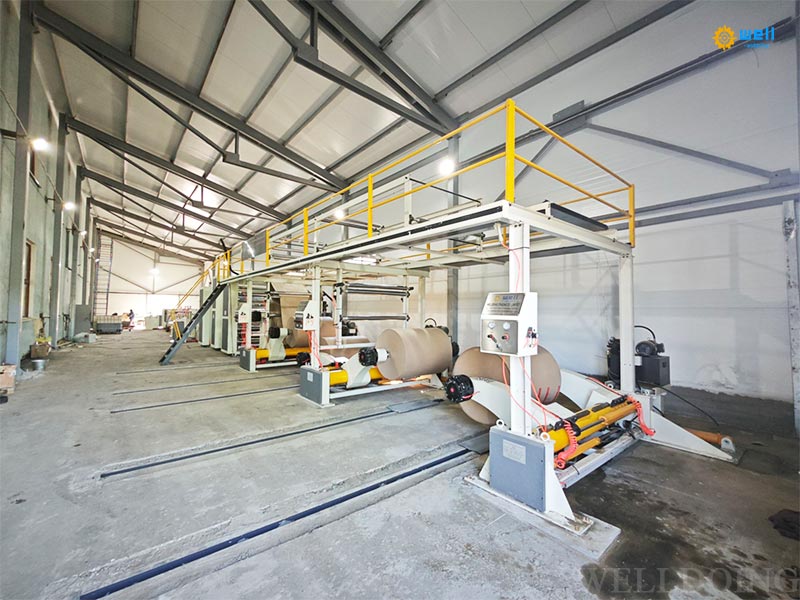

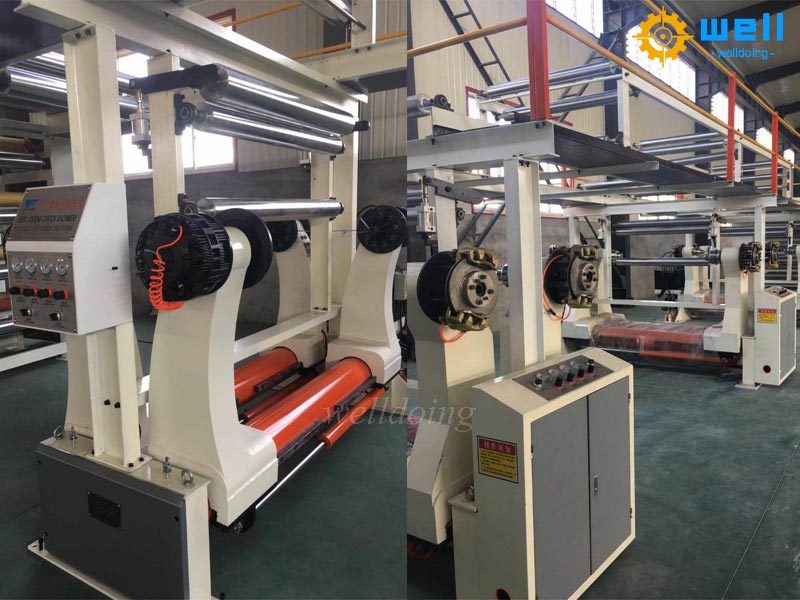

Hydraulic roll stand, automatic aligning machine, vacuum pressing, automatic stacker
|
Non-stop paper change, durable aligning effect, orderly stacking, reducing labor intensity.
|
|
Quality Control
|
Online thickness detection (±1μm), AI surface defect recognition (≥99.6%)
|
Real-time monitoring ensures finished product qualification rate ≥98%.
|
|
Warranty & After-Sales
|
1-year warranty; overseas engineer support for installation and maintenance
|
Comprehensive service covers installation, training and spare parts, solving use worries.
|
Core Advantages: Beyond Specifications & Parameters
Our cardboard production line also has obvious competitive advantages to help you stand out globally:
- High Automation: Full-process automation reduces manual intervention, improving efficiency and quality consistency.
- Energy-Saving & Environmental Protection: Energy-saving design reduces costs and meets global green production trends.
- Strong Versatility: Produces multi-layer, multi-thickness paperboard for diverse packaging fields.
- Durable & Reliable: High-quality materials and famous brand components ensure long-term stable operation.
Global Cooperation & Customized Services
Our production line has been exported to over 50 countries, winning wide recognition. We offer customization (width, capacity, heating type) to fit your needs perfectly.
Choosing our line means stable productivity, superior quality and long-term benefits. We provide professional pre-sales consultation, on-site service and after-sales support to help you expand the global market efficiently.
Contact us now for a detailed parameter list and quotation!
