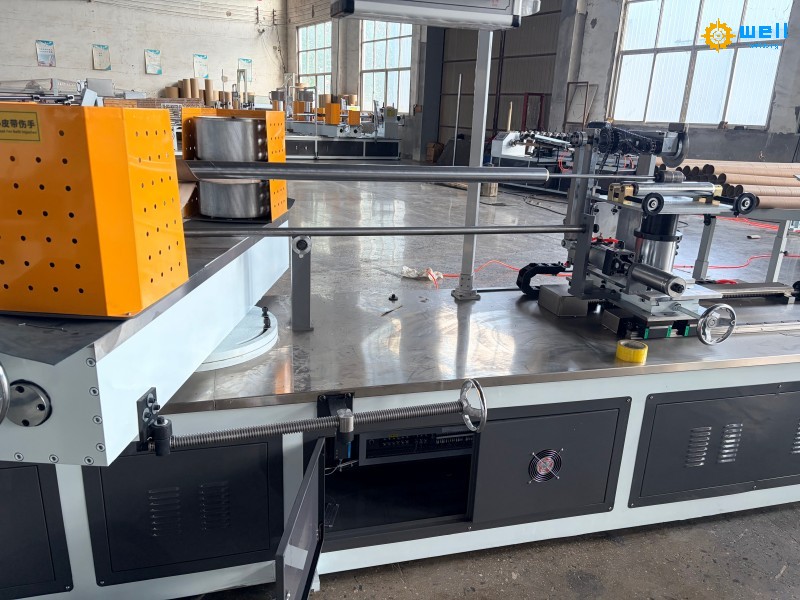

In the fast-paced packaging and industrial materials sector, high-efficiency, low-cost, and high-precision production equipment is the core competitiveness of enterprises. The Fully Automatic 4 Heads Spiral automatic paper tube equipment for Kraft Tube Production stands out as a flagship device tailored for kraft paper tube manufacturing, integrating advanced spiral winding technology, intelligent control systems, and a high-efficiency four-head design. It fully meets the mass production demands of industries such as packaging, textiles, chemicals, and logistics for high-quality kraft paper cores, becoming the preferred choice for modern paper core production lines.



What sets this machine apart from traditional single or double-head paper core machines is its four-head simultaneous winding design. Equipped with four sets of high-precision winding heads, the paper tube making machine enables synchronous and independent winding of multiple kraft paper cores at the same time, directly multiplying production capacity. The maximum production speed reaches an impressive 26 m/min, supporting a wide range of paper core inner diameters from 45mm to 200mm and wall thicknesses from 1mm to 15mm. Whether manufacturing small-diameter paper cores for adhesive tapes and films or large-diameter kraft tubes for industrial packaging and construction, the machine adapts flexibly to diverse production needs.

The four-head system features synchronized tension control and spiral winding technology, ensuring uniform kraft paper lamination and strong structural integrity of the finished tubes. Unlike conventional flat-back paper tubes, spiral-wound kraft cores exhibit seamless construction, enhanced pressure resistance, and durability, effectively avoiding cracking or deformation during use—critical for applications requiring high load-bearing capacity.

This automatic 4 heads spiral paper core making machine is engineered for full automation, eliminating manual intervention across the entire production workflow. The process begins with automatic feeding of jumbo kraft paper rolls, followed by precise gluing, spiral winding, layer lamination, servo-controlled synchronous cutting, and finished core unloading—all completed in a single, seamless operation.

At the heart of the system is a PLC + touchscreen intelligent control panel, allowing operators to set production parameters (e.g., core diameter, length, winding layers, speed) with simple touches. The system supports real-time monitoring of production data, fault diagnosis, and automatic alarm functions, significantly reducing operational difficulty and maintenance costs. Even less experienced workers can master the equipment quickly.

Key automated features include:

Durability and stability are non-negotiable for industrial production equipment. This spiral paper tube making machine features a heavy-duty thick steel frame processed by CNC cutting, which minimizes vibration and deformation during high-speed operation, ensuring long-term structural stability. The transmission system adopts arc gear transmission with oil-bath lubrication, delivering stable power output, reducing noise, and extending service life.

Every component is precision-engineered: high-torque servo motors provide stepless speed regulation; precision bearings ensure smooth operation of winding heads; and hardened cutting blades guarantee clean, burr-free cuts. These high-quality configurations not only enhance production precision but also reduce downtime and maintenance frequency, lowering overall production costs for enterprises.

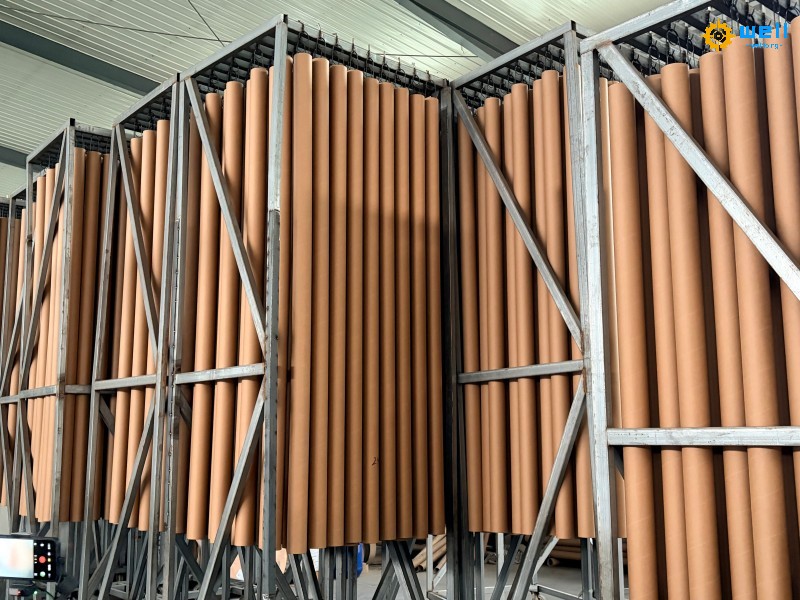

Kraft paper cores produced by this machine are widely used across multiple industries due to their high strength, eco-friendliness, and cost-effectiveness:



The Fully Automatic 4 Heads Spiral Paper Core Making Machine for Kraft Tube Production perfectly combines high efficiency, intelligence, precision, and durability. Its four-head synchronous winding design doubles output; full automation reduces labor costs; intelligent control ensures consistent product quality; and sturdy construction delivers long-term reliable operation.

For paper core manufacturers and packaging enterprises aiming to upgrade production capacity, improve product quality, and reduce costs, this machine is undoubtedly the ideal production solution. It not only meets current mass production demands but also adapts to future market changes, helping enterprises gain a competitive edge in the industr
