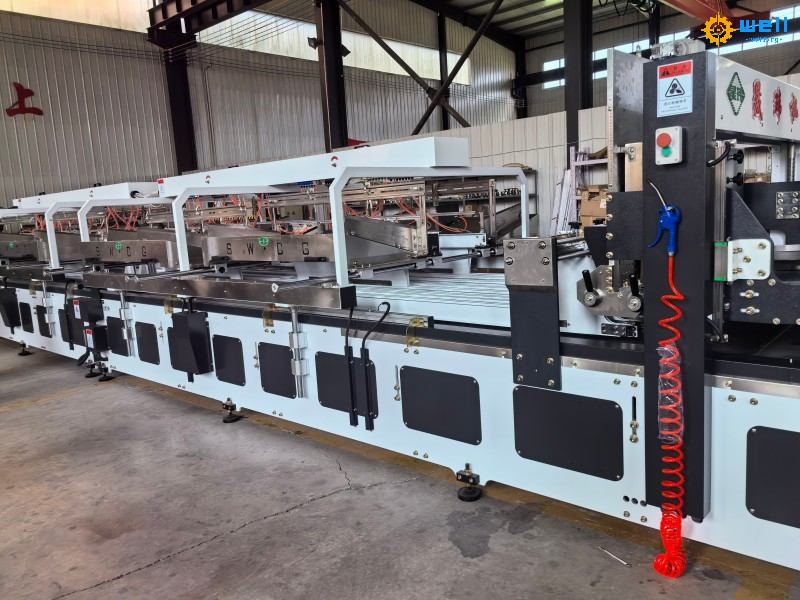

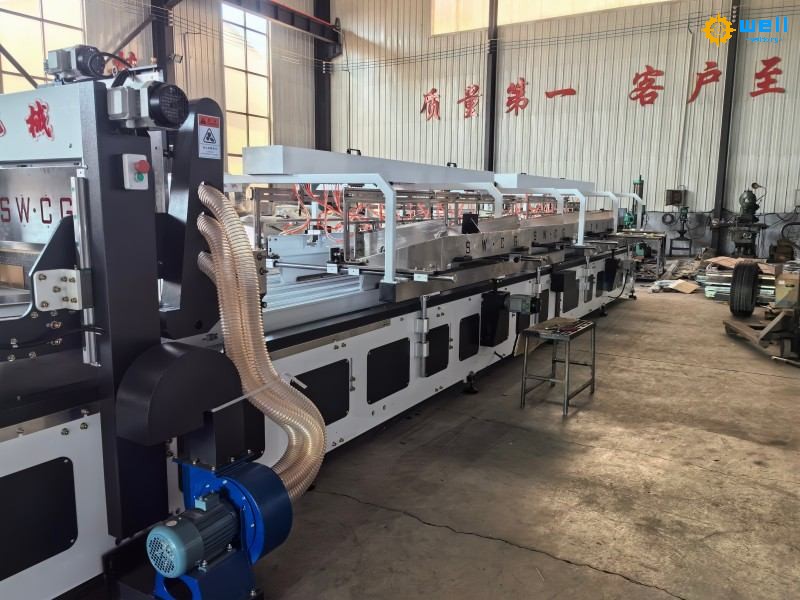

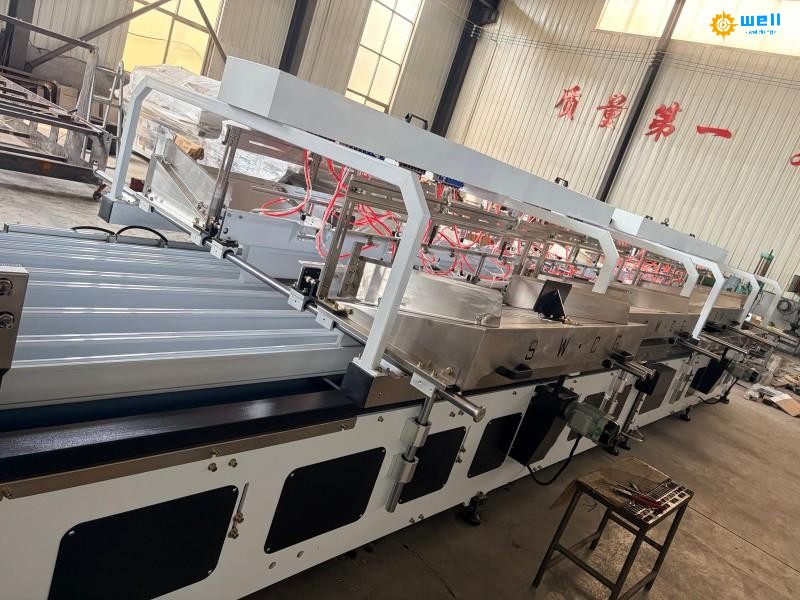

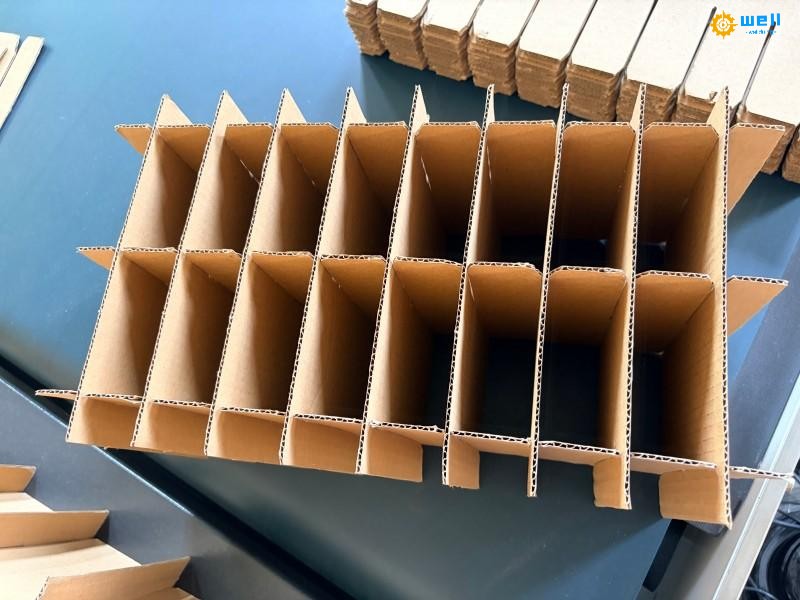

this machine is used to make the clapboard insert to each other . to packing the bottles , fruit , etc .

• Suitable for the auto insertion of all kinds of carton clapboard.

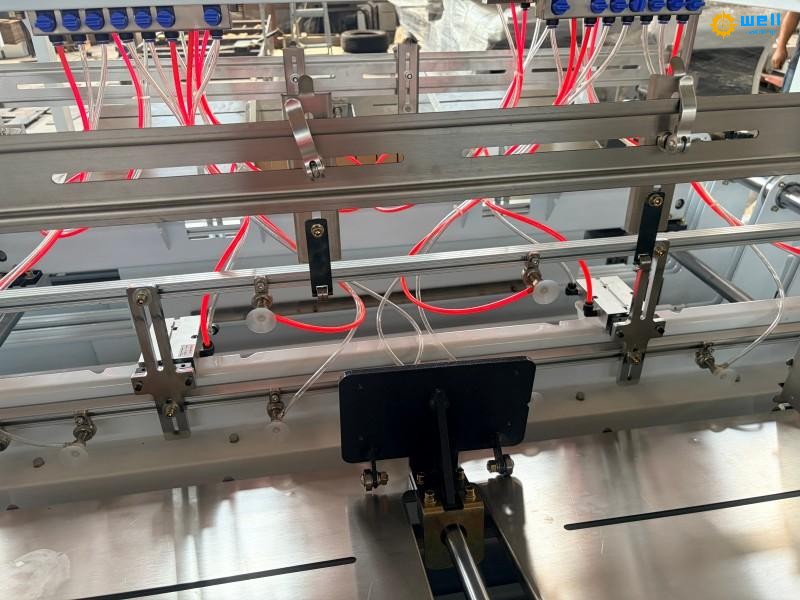

• Vertical direct using vacuum adsorption feeding , landscape orientation using servo feeding , quick and accurate .
• Longitudinal and transverse to cross the two pieces of paper at the same time.
• Longitudinal feeding shaft adopts electric lifting .
• Landscape orientation feeding worktable lifting adopts electric adjustment .
• Electric adjust the clapboard height in landscape orientation .

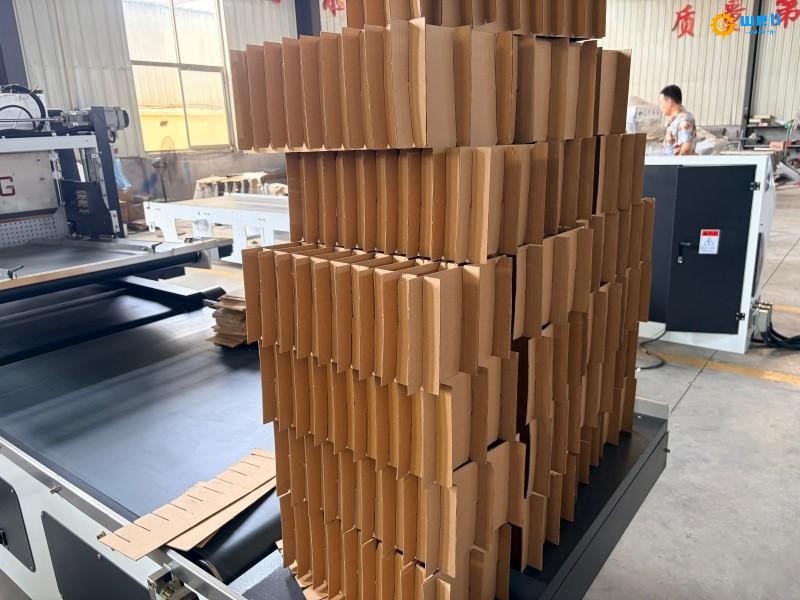

• Output in double work positions, high efficiency and energy saving.
• Touch screen input control, electric to adjust the clapboard parameters.
•
• technical parameter:


  Name	Unit	Date
  Horizontal inserting width: A	mm	120~900
  Lengthways sheets length: B	mm	210~450
  Clapboard Height: H	mm	80~300
  Lengthways  clapboard distance: D	mm	20~400
  Horizontal  clapboard distance: C	mm	45-850
  Lengthways sheets No.	unit	1-6
  Horizontal  clapboard No.	unit	1-21
  Carton inserting mouth width：F	mm	＞board thickness
  Carton thickness:K	mm	1.5~8mm

•
• certificate:
•
• transport:
•
•

Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.

FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
