automatic flexo printing die cutting slotting machine

automatic flexo printing die cutting slotting machine - Welldoing trading limited

Short Description:

The printing slotting die cutting machine, also named flexo printer slotter die cutter, is core integrated equipment for corrugated carton packaging production. It combines automatic paper feeding, water-based flexo printing, creasing, slotting and rotary die cutting into one continuous workflow, finishing finished carton blanks in a single pass to greatly streamline carton manufacturing procedures.

Equipped with PLC touch screen control and servo drive systems, it delivers stable paper feeding, precise color registration, neat slotting lines and smooth die-cut edges, effectively lowering cardboard waste and labor costs. Available with 1-6 color printing configurations, it fits regular shipping boxes, food packaging, commodity cartons and customized corrugated packages. Manufactured in China with CE certification, this high-efficiency carton machinery features solid structure, stable operation and long service life, widely favored by packaging factories worldwide for mass and small-batch customized orders.

Send email to us Download as PDF

Product Detail

Product Tags

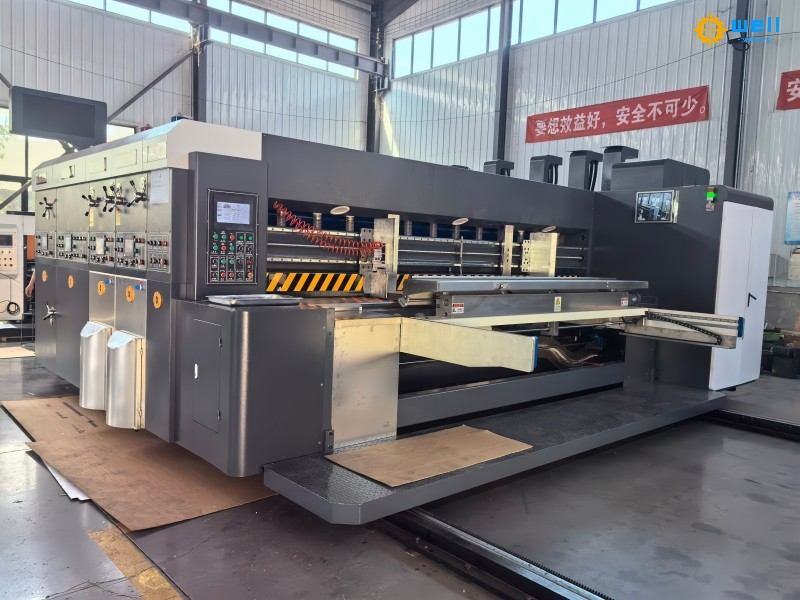

automatic flexo printing die cutting slotting machine

1. Die cutting shaft alignment gauze shaft alignment makes the machine run more easily.

2. The circumferential direction of the master roll and the die-cutting part adopts computer (PRC) rapid phase 360 ° adjustment and computer display to improve work efficiency (orders can be stored and executed arbitrarily). The input dimension phase is automatically adjusted.

3. It is equipped with automatic counting device, which can correctly control the production quantity.

4. The host adopts variable frequency motor, which can save 20% to 30% of power.

5. The standard carton adopts template free die cutting, which greatly saves the cost of template.

6. The diameter of all embossing shafts is 156mm, which greatly improves the stability of the equipment during operation.

7. CAD module design can arbitrarily combine single, double and multi-color printing units.

8. The flexo printer slotter die cutting machine is electrically separated and pneumatically locked and loosened. With warning light, it can improve the operability.

9. When the machine is stopped, the inking anilox will automatically separate from the printing plate, so that the printing plate surface will not be damaged.

10. The self-priming ink supply device can independently control the automatic idling cycle of the anilox roller. When the ink supply host is suspended, the surface will not be thirsty. Clean the anilox roller

11. All transmission shafts adopt keyless connecting rings to reduce the connection clearance and ensure the printing chromatic accuracy

12. All transmission shafts and rollers shall be polished and electroplated.

13. The whole carton box printer die cutter slotter equipment is controlled by PLC touch screen
